Aston Martin specifications and dimensions are kept proprietary, therefore this information shown here cannot be a guaranteed match. We advise all customers to double check these dimensions before placing any order.
| MODEL | YEAR | BOLT PATTERN | STUD SIZE | HUB DIAMETER |
| AMV8 | 72′ – 89′ | 5×4.75 / 5×120.7 | 1/2″ | 73.8 |
| CYGNET | 11′ – 13′ | 4×100 | 12×1.5 | 54.1 |
| DB7 | 94′ – 03′ | 5×4.75 / 5×120.7 | 1/2″ | 73.8 |
| DB9 | 04′ – 16′ | 5×4.5 / 5×114.3 | 14×2.0 | 68.1 |
| DB11 | 16′ – 21′ | 5×128 | 14×2.0 | 75.1 |
| DBS | 08′ – 13′ | 5×4.5 / 5×114.3 | 14×2.0 | 69.8 |
| DBS | 19′ – 21′ | 5×128 | 14×2.0 | 75.1 |
| RAPIDE | 10′ – 19′ | 5×128 | 14×2.0 | 75.1 |

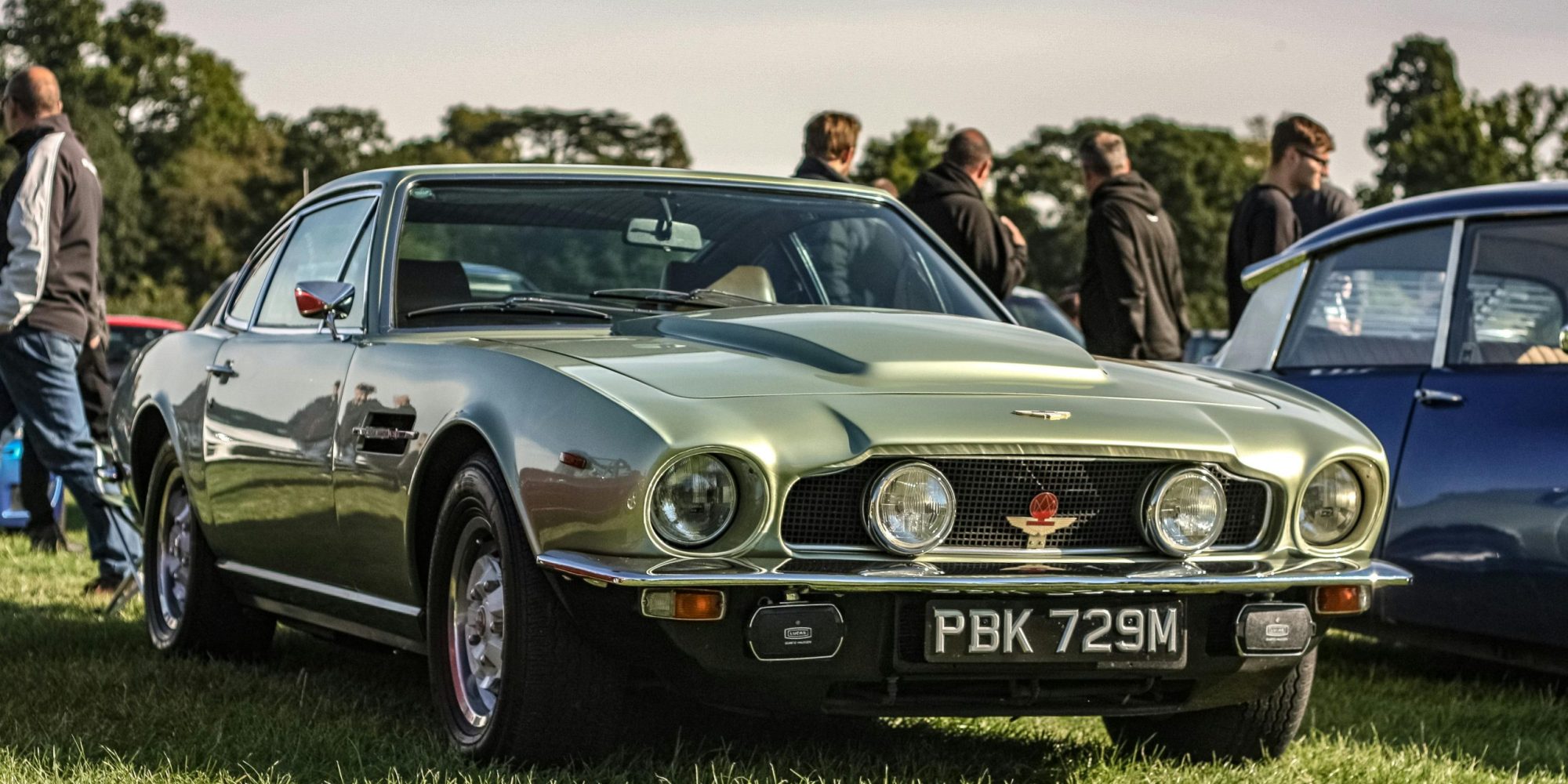

| V8 | 72′ – 89′ | 5×4.75 / 5×120.7 | 1/2″ | 73.8 |
| V8 | 96′ – 00′ | 5×4.75 / 5×120.7 | 1/2″ | 73.8 |

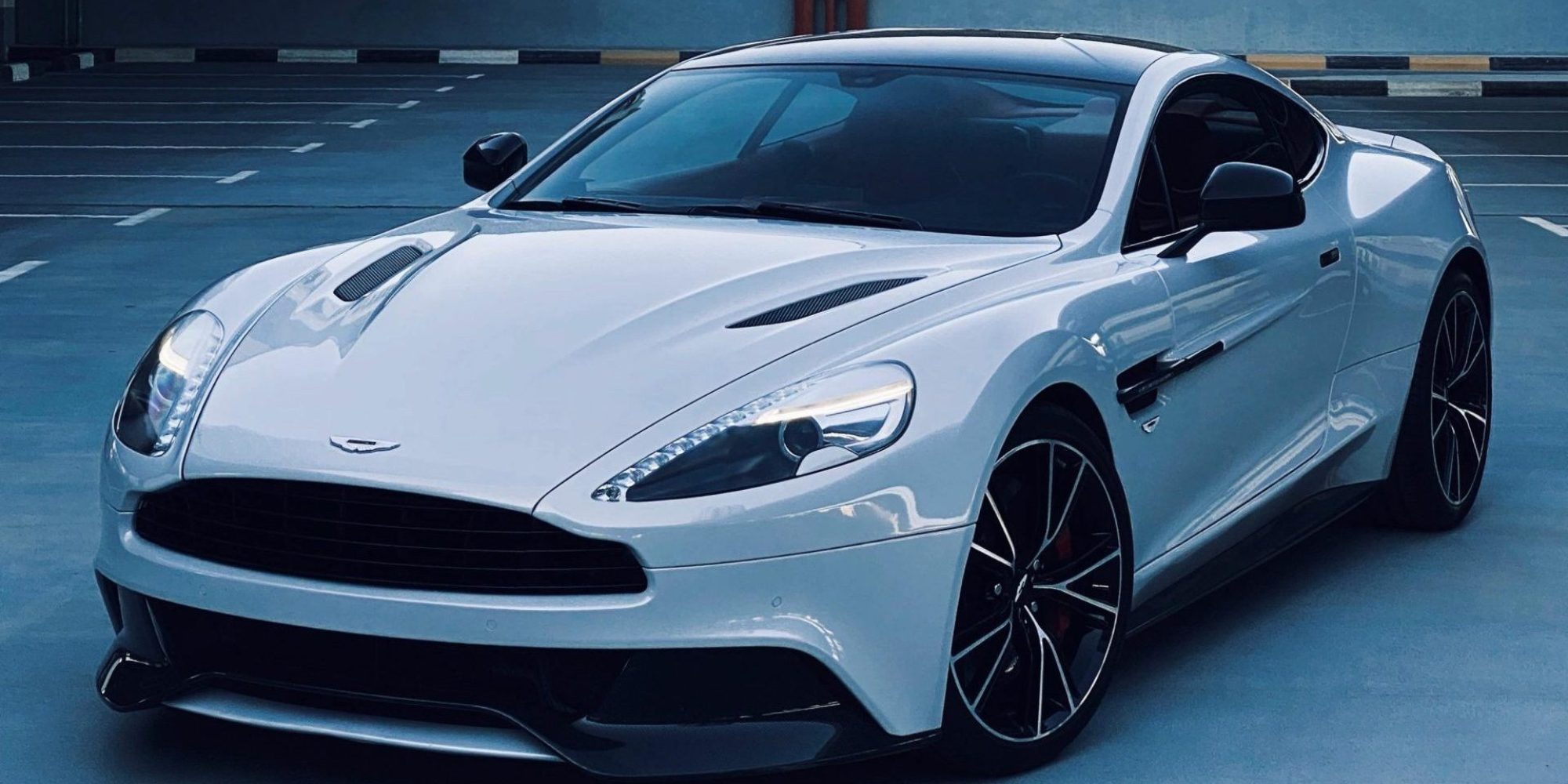

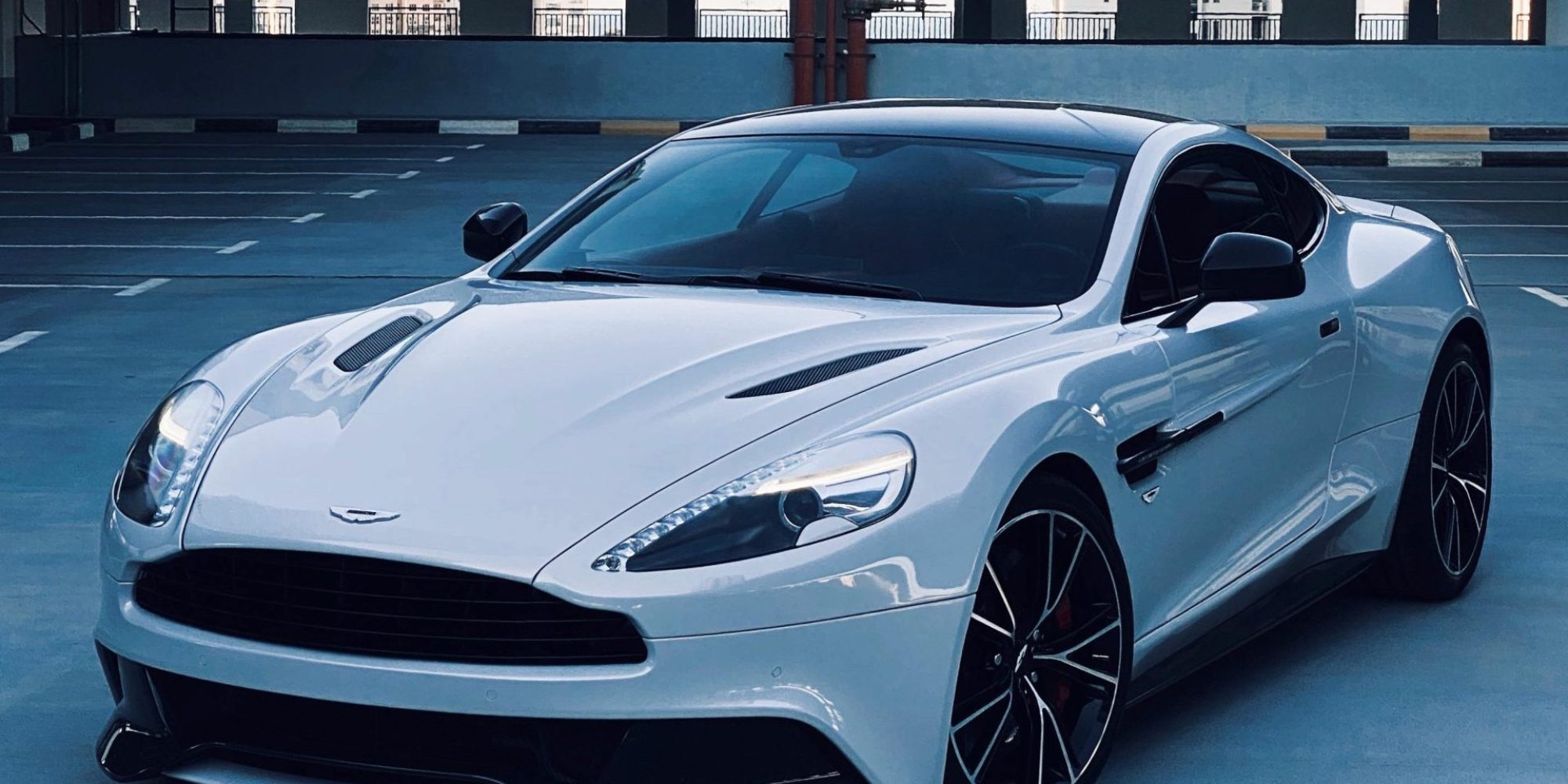

| VANQUISH (ALL) | 11′ – 18′ | 5×128 | 14×2.0 | 75.1 |
| VANTAGE (ALL) | 05′ – 18′ | 5×4.5 / 5×114.3 | 14×2.0 | 68.1 |

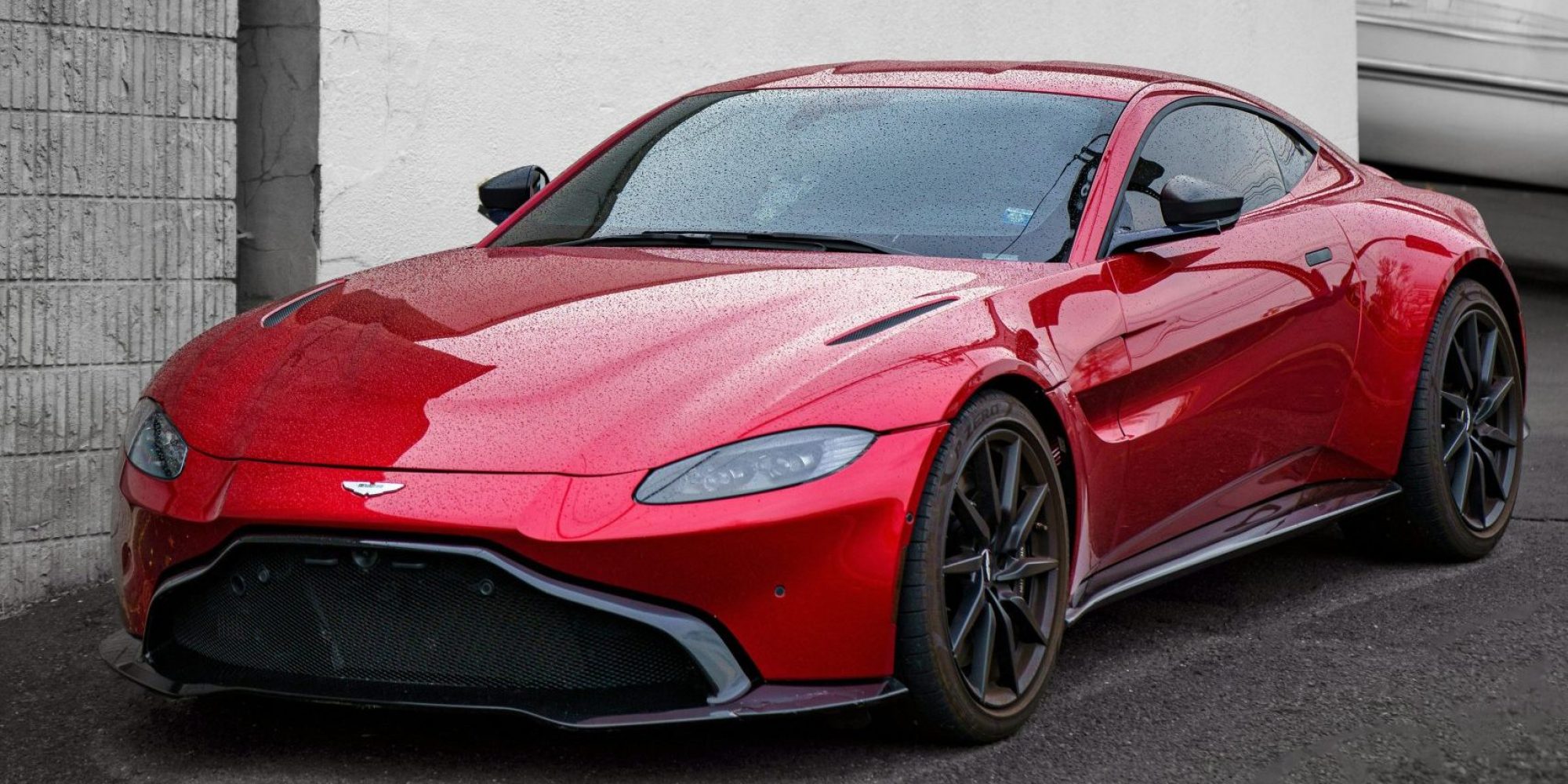

| VANTAGE (ALL) | 19′ – 21′ | 5×128 | 14×2.0 | 75.1 |
| VIRAGE | 88′ – 96′ | 5×4.75 / 5×120.7 | 1/2″ | 73.8 |
| VIRAGE | 11′ – 12′ | 5×4.5 / 5×114.3 | 14×2.0 | 68.1 |
| ZAGATO | 86′ – 89′ | 5×4.75 / 5×120.7 | 1/2″ | 73.8 |
| ZAGATO | 11′ – 12′ | 5×4.5 / 5×114.3 | 14×2.0 | 68.1 |
